LSI SAS3801E Kit 8 Port External SAS/SATA Controller Card Low Profile PCI-E8

This item is warranted by the product manufacturer only.

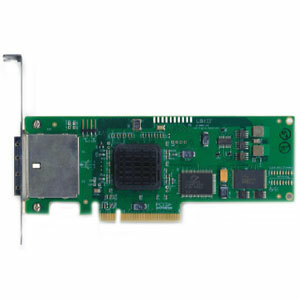

LSI SAS3801E Kit 8 Port External SAS/SATA Controller Card Low Profile PCI-E8
Actual product may not be exactly as shown.
Customer Photos (0)
Reg. Price: $352.98  CAD
This Product is Not Available

This item is no longer available. Notify me if this product is available again.
Avg. Rating: 0 Customer Reviews | Write a Review
Share this:
Add to your wish list
E-Mail to a friend
More from LSI
More RAID Cards - SAS from LSI
Similar products
Print this item
Notify me

   Shipping Weight:   2 lbs
   Part #: LSI00138

Features    [ Edit | History ]

The LSI SAS3801E card enables large-scale direct attach storage (DAS) arrays through eight external 3 Gb/s mini-SAS ports. The host bus adapter drives external server storage RAID and non-RAID enclosures with unprecedented throughput by connecting an eight-lane 2.5 Gb/s PCI Express bus with two external x4 SFF-8088 mini-SAS connectors. Utilizing the SFF-8088 connectors allows the SAS3801E to fit into a low-profile adapter, perfect for 2U servers driving 4800 MB/s full-duplex externally.

Quick Specs:
Package Contents
  • LSISAS3801E 8 Port SAS Controller
  • Low-profile bracket
  • Driver CD
  • Quick Installation Guide
Host Interface PCI Express x8
Data Transfer Rate Up to 2.34 Gbps - Per Port
Dimensions 2.7" Height x 6.6" Width
Limited Warranty 3 Year
Ports 2 x SFF-8088 3Gb/s SAS Serial Attached SCSI (SAS) External
Drive Type Serial Attached SCSI (SAS)
Form Factor Low-profile Plug-in Card
Height 2.7"
Width 6.6"

Specifications    [ Edit | History ]
General Information
     Brand Name: LSI Logic
     Manufacturer: LSI Logic Corp
     Manufacturer Part Number: LSI00138
     Manufacturer Website Address:
     Product Model: LSISAS3801E
     Product Name: LSISAS3801E 8 Port SAS Controller
     Product Type: SAS Controller
     Ports: 2 x SFF-8088 3Gb/s SAS Serial Attached SCSI (SAS) External
     Package Contents:
  • LSISAS3801E 8 Port SAS Controller
  • Low-profile bracket
  • Driver CD
  • Quick Installation Guide

Physical Characteristics
     Dimensions: 2.7" (68.6 mm) Height x 6.6" (167.6 mm) Width
     Form Factor: Low-profile Plug-in Card
     Height: 2.7" (68.6 mm)
     Width: 6.6" (167.6 mm)
Technical Information
     Data Transfer Rate: Up to 2.34 Gbps - Per Port
     Drive Type: Serial Attached SCSI (SAS)
     Host Interface: PCI Express x8
     Platform Supported: PC
     Limited Warranty: 3 Year
