ASRock A75M-HVS mATX FM1 AMD A75 FCH DDR3 1PCI-E16 1PCI-E1 1PCI SATA3 HDMI D-Sub USB3.0 Motherboard

This product can only be exchanged or replaced with the exact same item.
ASRock A75M-HVS mATX FM1 AMD A75 FCH DDR3 1PCI-E16 1PCI-E1 1PCI SATA3 HDMI D-Sub USB3.0 Motherboard - 73032_l.jpg
Actual product may not be exactly as shown.
ASRock A75M-HVS mATX FM1 AMD A75 FCH DDR3 1PCI-E16 1PCI-E1 1PCI SATA3 HDMI D-Sub USB3.0 Motherboard - 73032_l.jpg ASRock A75M-HVS mATX FM1 AMD A75 FCH DDR3 1PCI-E16 1PCI-E1 1PCI SATA3 HDMI D-Sub USB3.0 Motherboard - 73032_1.jpg ASRock A75M-HVS mATX FM1 AMD A75 FCH DDR3 1PCI-E16 1PCI-E1 1PCI SATA3 HDMI D-Sub USB3.0 Motherboard - 73032_2.jpg ASRock A75M-HVS mATX FM1 AMD A75 FCH DDR3 1PCI-E16 1PCI-E1 1PCI SATA3 HDMI D-Sub USB3.0 Motherboard - 73032_3.jpg Customer Photos (0)
ASRock
Reg. Price: $77.99  CAD
Availability:
This Product is Not Available

This item is no longer available. Notify me if this product is available again.
Service Plan:
NCIX Express Exchange
If your product is diagnosed as defective, we will replace it with a brand new one! Learn More
None, I do not want NCIX Express Exchange
NCIX.com 1 Year Component Express Exchange - Only $6.99
NCIX.com 2 Year Component Express Exchange - Only $17.99
NCIX.com 3 Year Component Express Exchange - Only $27.99
Avg. Rating: 0 Customer Reviews | Write a Review
Share this:
Add to your wish list
E-Mail to a friend
More from ASRock
More Motherboards from ASRock
Similar products
Print this item
Notify me

   SKU:
73032
   Shipping Weight:   1.8 lbs
   Part #: 90-MXGJ80-A0UAYZ

Features    [ Edit | History ]
XFast 555 Technology : XFast RAM / XFast LAN / XFast USB

Fully Optimize Memory Usage
Faster Internet Access
Boosts up your USB speed
5X Faster for
Photoshop Execution
XFast RAM will create  a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.
Lower Latency
In Game
XFast LAN can lower latency in the game after setting online game priority higher.
Time latency in World of Warcraft: Cataclysm
* Lower is better
USB Performance
Comparison
ATTO Disk Benchmark 4K Read
ASRock Motherboard
Other Motherboard


*The performance boost percentage may vary with a different configuration.

The Most Powerful APU graphics Ever

With the world’s first APU integrated graphics supporting DirectX 11, the powerful AMD A series APU delivers the unbelievable graphics performance!

It can upgrade your gaming experience by performing an over 5500 points* superb result of 3Dmark Vantage (Performance setting).

3DMark Vantage (Performance)
ASRock A75/A55 Motherboard


Other A75/A55 Motherboard


*Please be noted that 5500+ in 3DMark Vantage score is tested under overclocking mode.

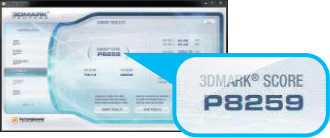

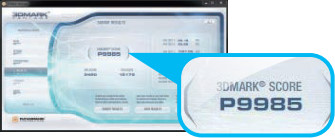

Dual Graphics

The AMD Dual Graphics technology combines APU and GPU computing power to optimize user's visual experience.

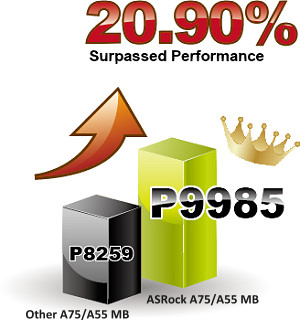

3DMark Vantage (Performance)
ASRock A75/A55 Motherboard


Other A75/A55 Motherboard
Support DDR3 2400+

The World's Fastest A75 Motherboard With DDR3 2400+ Support.
AMD Steady Video™

New Video Post Processing Capability : automatic jitter reduction on home/online video.
BeforeAfter
APU

Accelerated Processing Unit (APU) is the unique combination of CPU and GPU computing technologies. It is designed to vastly improve today's Internet, video processing, playback, and gaming experiences.
Native USB 3.0 and SATA3 Support

The AMD A75 Hudson D3 chipset provides native support of USB 3.0 and SATA3. ASRock A75 Motherboard Series provide rich storage options including 4 USB 3.0 and 6 SATA3 ports.
DirectX® 11

DirectX® 11 is the very latest in high-speed, high-fidelity gaming and computing. It can enable not just more visually stunning games, but significant performance improvements in some of your favorite websites and everyday applications.

THX TruStudio

THX TruStudio is specially designed to bring the same great audio experience found in live performances, films, and recording studios to the PC.
Free Bundle - Cyberlink MediaEspresso 6.5 Trial

CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert  and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!

Limitations:
30-day trial limitation
convert  videos to the H.264 format 50 times
USB 3.0

10X Faster Speed! Speed up to 5 Gb/s

Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.0 technology advances the data transfer rate up to 5Gb/s.

Graphical UEFI – The Revolutionary BIOS Interface

Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience – UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling – Besides keyboard control, you can freely use mouse to select  your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD size.*

*Windows® Vista™ 64bit or Windows® 7 64bit OS is required.
AXTU - The All-in-1 Tuning Software

ASRock Extreme Tuning Utility (AXTU) is an all-in-one software to fine-tune different features in an user-friendly interface, which includes Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to adjust the CPU frequency, ratio and some voltages for optimal system performance. In OC DNA, you can save your OC settings as a profile and share with your friends. Your friends then can load the OC profile to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance.
ASRock SmartView

It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.

more...

SATA3

Enjoy 6 Gb/s hight transfer speed now!

Maximum your harddisk performance with SATA3.0. SATA3 technology enables the incredible data transfer rate up to 6 Gb/s speed which is 2X faster speed over SATA2.
ASRock App Charger

Fast Charge & Charge Anytime

Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.

Specifications    [ Edit | History ]
General
CPU- Support for Socket FM1 100W processors
- Supports AMD's Cool 'n' Quiet Technology
- UMI-Link GEN2
Chipset- AMD A75 FCH (Hudson-D3)
Memory- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 2400+(OC)/1866/1600/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- DRAM, VDDP, SB Voltage Multi-adjustment
 Audio, Video and Networking
Graphics- AMD Radeon HD 65XX/64XX graphics
- DirectX 11, Pixel Shader 5.0
- Max. shared memory 512MB
- Dual VGA Output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
- Supports AMD Steady Video™: New video post processing capability for automatic jutter reduction on home/online video
- Supports HDCP function with HDMI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port

*Some of AMD FM1 CPU (i.e AMD Athlon/Sempron family FM1 CPU) does not have integrated graphics processor. When this kind of CPU is installed, a discrete VGA card is required.
Audio- 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
- Supports THX TruStudio™
LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
 Expansion / Connectivity
Slots- 1 x PCI Express 2.0 x16 slot
- 1 x PCI Express 2.0 x1 slot
- 1 x PCI slot
- Supports AMD Dual Graphics
SATA3- 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
USB 3.0- 4 x USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s
Connector- 6 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x Print port header
- 1 x COM port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/OI/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x Ready-to-Use USB 2.0 Ports
- 4 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- ASRock U-COP
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), AMD Live! Explorer, AMD Fusion, CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
Accessories- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor- Micro ATX Form Factor: 8.9-in x 8.5-in, 22.6 cm x 21.6 cm
- Solid Capacitor for CPU Power
OS- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Caution:
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
