Corsair AX760I 760W ATX 12V V2.31 80 Plus Platinum Modular Power Supply Active PFC 120mm Fan

Corsair AX760I 760W ATX 12V V2.31 80 Plus Platinum Modular Power Supply Active PFC 120mm Fan - 1
Actual product may not be exactly as shown.
Corsair AX760I 760W ATX 12V V2.31 80 Plus Platinum Modular Power Supply Active PFC 120mm Fan - 77640_l.jpg Corsair AX760I 760W ATX 12V V2.31 80 Plus Platinum Modular Power Supply Active PFC 120mm Fan - 77640_1.jpg Corsair AX760I 760W ATX 12V V2.31 80 Plus Platinum Modular Power Supply Active PFC 120mm Fan - 77640_2.jpg Corsair AX760I 760W ATX 12V V2.31 80 Plus Platinum Modular Power Supply Active PFC 120mm Fan - 77640_3.jpg Corsair AX760I 760W ATX 12V V2.31 80 Plus Platinum Modular Power Supply Active PFC 120mm Fan - 77640_4.jpg Customer Photos (0)
Corsair
Reg. Price: $249.98  CAD
Availability:
This Product is Not Available

This item is no longer available. Notify me if this product is available again.
Service Plan:
NCIX Express Exchange
If your product is diagnosed as defective, we will replace it with a brand new one! Learn More
None, I do not want NCIX Express Exchange
NCIX.com 1 Year Component Express Exchange - Only $19.99
NCIX.com 2 Year Component Express Exchange - Only $50.99
NCIX.com 3 Year Component Express Exchange - Only $83.99

Average Rating:


Share this:

This product is not available.

In-Store price match
Add to your wish list
E-Mail to a friend
More from Corsair

More Power Supplies from Corsair

Similar products
Print this item
Notify me

Part #: CP-9020036-NA

SKU: 77640
Shipping Weight: 8 lbs

May We Also Suggest

Product Videos [ Edit ]


Features [ Edit | History ]

Features:

Corsair AXi Digital ATX PSU: complete digital control The revolutionary AXi Series PSUs are the first desktop PC power supplies to use digital (DSP) control and Corsair Link to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX760i makes on-the-fly adjustments for incredibly tight voltage regulation, 80 PLUS® Platinum Efficiency, and clean, stable power.

Quick Specs:
Package Contents
  • AX760i Power Supply
  • Modular Cable Pack
  • Accessory Bag with Mounting Hardware
  • Cable Ties
  • Case Badge
  • Installation Guide
  • Corsair Link Digital Interface Cable
  • Corsair Link USB Dongle

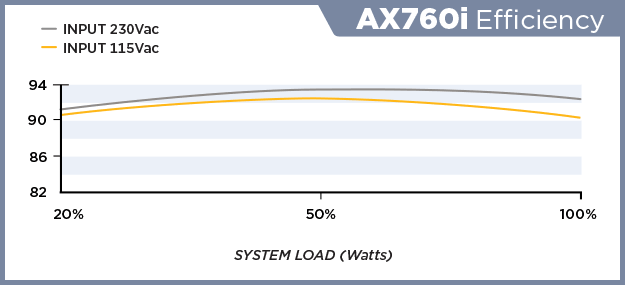

Efficiency 92%
Input Voltage 110 V AC 220 V AC
Output Power 760 W
Limited Warranty 7 Year
Output Voltage 3.3 V DC @ 25 A 5 V DC @ 25 A 12 V DC @ 63.30 A -12 V DC @ 800 mA 5 V DC @ 3 A
Weight (Approximate) 7.25 lb
Form Factor Internal
Country of Origin China
Height 3.4"
Width 5.9"
Depth 6.3"
Number of Fans 1
Green Compliant Yes
Green Compliance Certificate/Authority 80 Plus Platinum
ATI CrossFire Supported Yes
NVIDIA SLI Supported Yes
Number of +12V Rails 1
Modular Yes
ProductId1024377576

Specifications [ Edit | History ]

General Information
     Brand Name: Corsair
     Manufacturer: Corsair
     Manufacturer Part Number: CP-9020036-NA
     Manufacturer Website Address: http://www.corsair.com
     Product Model: AX760i
     Product Name: AX760i Power Supply
     Product Series: AXi
     Product Type: Power Supply
Interfaces/Ports
     Receptacles: 1 x 24-pin ATX Motherboard
2 x EPS12V Motherboard
6 x 6+2pin PCI-E
12 x Serial ATA
8 x 4-pin LP4 Peripheral Device
2 x 4-pin SP4 Floppy Drive
Miscellaneous
     Country of Origin: China
     Green Compliance Certificate/Authority: 80 Plus Platinum
     Green Compliant: Yes
     Package Contents:
  • AX760i Power Supply
  • Modular Cable Pack
  • Accessory Bag with Mounting Hardware
  • Cable Ties
  • Case Badge
  • Installation Guide
  • Corsair Link Digital Interface Cable
  • Corsair Link USB Dongle

Physical Characteristics
     Depth: 6.3" (160 mm)
     Form Factor: Internal
     Height: 3.4" (86.4 mm)
     Weight (Approximate): 3.29 kg
     Width: 5.9" (149.9 mm)
Power Description
     Input Current: 10 A @ 110V
5 A @ 220V
     Input Voltage: 110 V AC
220 V AC
     Input Voltage Range: 90 V AC to 264 V AC
     Input Voltage Type: AC
     Number of +12V Rails: 1
     Output Power: 760 W
     Output Voltage: 3.3 V DC @ 25 A
5 V DC @ 25 A
12 V DC @ 63.30 A
-12 V DC @ 800 mA
5 V DC @ 3 A
Reliability
     MTBF: 100000 Hour
Technical Information
     ATI CrossFire Supported: Yes
     Efficiency: 92%
     Modular: Yes
     Number of Fans: 1
     NVIDIA SLI Supported: Yes
     Power Factor Correction (PFC): Active
     Protection Type: Over Voltage
Under Voltage
Over Current
Short Circuit
     Specification Compliance: EPS12V
Warranty
     Limited Warranty: 7 Year

Customer Reviews of Corsair CP-9020036-NA

Product reviews on NCIX.com are screened for relevance and inappropriate content. Reviews may contain inaccurate information about the product. If there is a discrepancy, please use the Flag this Review link located beside each review. Reviews are not an endorsement expressed by NCIX.com, but opinions from customers based on their own experience with a product. We do not recommend you make purchasing decisions based on facts or opinions expressed regarding Corsair CP-9020036-NA reviews.
Scott_S11
11/12/14
Experience: 1 Weeks

Pros

Fully modular, comes with a wide assortment of cables, nice matte-black finish, comes with Corsair Link module and 4 screw for mounting.
Cons
None
Summary
This is definitely a very nice little unit. It's 80 Plus Platinum rated, has an awesome look to it, and is actually fairly light all things considered. I think the bag of cables actually weighs more than the PSU itself!

One thing I'd like to mention, which I believe it awesome, is that here is a single 8-Pin GPU cable (versus two tethered 8/6+2 cables). The benefit to this is that is the GTX 970 that I ordered only has one 8-Pin connector on it! This way, I don't have a cord dangling unused.

The sleeving is decent, albeit a little bit stiff. I await a day that we can get cables that are flexible but still make the internal cables non-visible.

All-in-all, if you have the cash, this is definitely a highly recommended PSU.
