Thecus N7510 7 Bay SATA RAID 0/1/5/6/10/JBOD Tower Network Storage Server NAS HDMI USB3.0

Thecus N7510 7 Bay SATA RAID 0/1/5/6/10/JBOD Tower Network Storage Server NAS HDMI USB3.0 - 1
Actual product may not be exactly as shown.
Thecus N7510 7 Bay SATA RAID 0/1/5/6/10/JBOD Tower Network Storage Server NAS HDMI USB3.0 - 79351_l.jpg Thecus N7510 7 Bay SATA RAID 0/1/5/6/10/JBOD Tower Network Storage Server NAS HDMI USB3.0 - 79351_2.jpg Thecus N7510 7 Bay SATA RAID 0/1/5/6/10/JBOD Tower Network Storage Server NAS HDMI USB3.0 - 79351_3.jpg Thecus N7510 7 Bay SATA RAID 0/1/5/6/10/JBOD Tower Network Storage Server NAS HDMI USB3.0 - 79351_1.jpg Thecus N7510 7 Bay SATA RAID 0/1/5/6/10/JBOD Tower Network Storage Server NAS HDMI USB3.0 - 79351_4.jpg Customer Photos (0)
Thecus Tech
Reg. Price: $875.49  CAD
This Product is Not Available

This item is no longer available. Notify me if this product is available again.
Service Plan:
NCIX Express Exchange
If your product is diagnosed as defective, we will replace it with a brand new one! Learn More
None, I do not want NCIX Express Exchange 2 Year Express Exchange - Only $99.99 3 Year Express Exchange - Only $119.99
Avg. Rating:
Share this:
Add to your wish list
E-Mail to a friend
More from Thecus Tech
More Network Storage NAS from Thecus Tech
Similar products
Print this item
Notify me

   Shipping Weight:   24 lbs
   Part #: N7510

Features    [ Edit | History ]

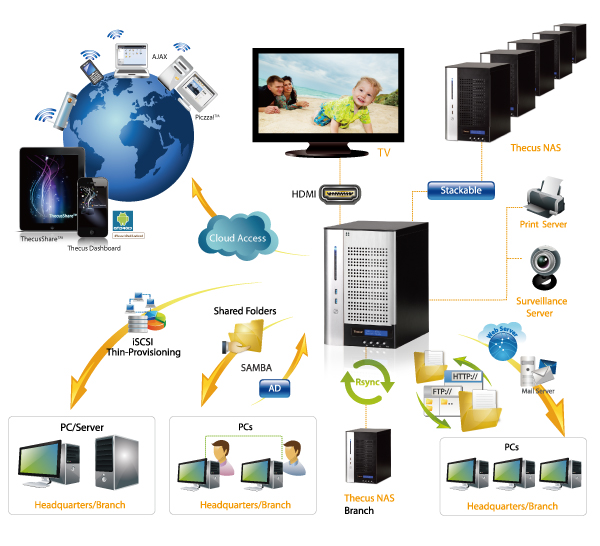

Great news NAS lovers, a new high-value 7-bay NAS is now available on the market! Thecus® put their hands together and added a new tower to the Vision series. Equipped with an Intel® Atom™ processor, 2GB of DDR3 RAM, HDMI output and offering incomparable data protection with the McAfee antivirus, this NAS will offer lots of power and lots of storage capacity without spending lots of money. With the 2-bay N2800, 4-bay N4800 and N4510U and the 5-bay N5550, the 7-bay N7510 completes the Vision series of Intel® Atom™ NAS from Thecus®.

Quick Specs:
Limited Warranty 2 Year
Standard Memory 2 GB
Weight (Approximate) 24.05 lb
Operating System ThecusOS 5.0
Form Factor Tower
Processor Speed 2.13 GHz
Processor Type Atom
RAID Levels 0 1 10 5 6 50 JBOD
Controller Type Serial ATA
Memory Technology DDR3 SDRAM
Processor Model D2701
Height 12.6"
Width 8.3"
Depth 10.6"
Processor Core Dual-core (2 Core)
Green Compliant Yes
Green Compliance Certificate/Authority WEEE RoHS
Processor Manufacturer Intel
RAID Supported Yes
Ethernet Technology Gigabit Ethernet
Number of Total Expansion Bays 7
Network (RJ-45) Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 4
Number of USB 3.0 Ports 2
Number of Hard Drives Installed No
Number of 2.5" Bays 7
Number of 2.5"/3.5" Bays 7
Clustering Supported Yes
Number of Solid State Drives No

Specifications    [ Edit | History ]
     Controller Type: Serial ATA
     RAID Levels: 0
     RAID Supported: Yes
General Information
     Brand Name: Thecus
     Manufacturer: Thecus USA, Inc
     Manufacturer Part Number: N7510
     Manufacturer Website Address:
     Product Model: N7510
     Product Name: N7510 Network Storage Server
     Product Type: Network Storage Server
I/O Expansions
     Number of 2.5" Bays: 7
     Number of 2.5"/3.5" Bays: 7
     Number of Total Expansion Bays: 7
     eSATA: Yes
     HDMI: Yes
     Network (RJ-45): Yes
     Number of USB 2.0 Ports: 4
     Number of USB 3.0 Ports: 2
     Total Number of USB Ports: 6
     VGA: Yes
Management & Protocols
     Protocols: TCP/IP
     Memory Technology: DDR3 SDRAM
     Standard Memory: 2 GB
     Green Compliance Certificate/Authority: WEEE
     Green Compliant: Yes
Network & Communication
     Ethernet Technology: Gigabit Ethernet
Physical Characteristics
     Color: Black
     Depth: 10.6" (270 mm)
     Form Factor: Tower
     Height: 12.6" (320 mm)
     Weight (Approximate): 10.91 kg
     Width: 8.3" (210 mm)
Processor & Chipset
     Processor Core: Dual-core (2 Core)
     Processor Manufacturer: Intel
     Processor Model: D2701
     Processor Speed: 2.13 GHz
     Processor Type: Atom
     Operating System: ThecusOS 5.0
     Clustering Supported: Yes
     Flash Memory Capacity: 1 GB
     Number of Hard Drives Installed: No
     Number of Hard Drives Supported: 7
     Number of Solid State Drives: No
     Limited Warranty: 2 Year

Thecus Tech N7510 Customer Reviews

Product reviews on are screened for relevance and inappropriate content. Reviews may contain inaccurate information about the product. If there is a discrepancy, please use the Flag this Review link located beside each review. Reviews are not an endorsement expressed by, but opinions from customers based on their own experience with a product. We do not recommend you make purchasing decisions based on facts or opinions expressed regarding Thecus Tech N7510 reviews.
Experience: 2 Weeks
 Verified Owner
-Price/features ratio pretty good on special
-Many, many features, sleek looking
-Possibility to add modules
-Can install 3.5 or 2.5 drives
-Usually quiet
-I suppose regualr price is a con
-No tooless HDD installation
-Some little bugs here and there, but nothing major
I paid this for 599$ on special. When you think about it most decent 4-bays NAS are 400$ and up, so for "only" 200$ more you get a 7-bays.
First the NAS is very, very sleek looking. It the kind of NAS you want to show off, not hide in the closet! However the LEDs and the OLED screen are VERY bright and there is no way to turn them off through firmware unlike another brand of NAS that I've been using.
HDD installation is very straigforward, you can install 3.5 or 2.5 drives at will. However it's not toolless, you need to secure each drive with 4 screws, not too bad still. You can lock each tray and they give you 4 keys for them so you are sure not to lose them all.
Drives set-up for the RAID is very easy, however constructing big arrays take a very long time, close to 24 hours for 2x4TB RAID1 for example.
Thecus OS is quite good looking, is available in French as well, and has a slew of features to configure everything. I haven't used all of them yet, but one the the most important is Data Guard which basically configure the built-in rsync module to backup folders or raid volumes to either another internal folder, or even another Thecus NAS should you have one. It can be real-time, or a one-time copy. Only drawback is Thecus OS6 is out now and they haven't planned an update  yet for the N7510, it might come in the near future.
You have an esata port, 6 usb ports for Printer, APC, USB storage, KB + mouse for an external display through HDMI...
Thecus forum support is very good, you have answers usually within 24 hours for any questions. You can also download many Thecus modules such as XBMC to use the NAS as an HTPC (keep in mind the onboard graphics is ATOM based, so no 1080P HD play is possible), or even third-party modules such as better FTP servers, tools, etc...
Finally, the most important aspect is SPEED... this thing maxes out the gigabit bandwith! I can transfer files to and from my NAS at around 130 MB/s, but I'm not using any kind of fancy raid levels, I have 3 RAID1 arrays and 1 JOBD drive. I have not yet configured link aggregation (2 ethernet ports) but I might get faster speeds if I have multiple clients connected.
Basically, this NAS is quite (over?) powerful for a home user, it is meant for SOHO and it shows from it's robust look and many features, however I was tired of having my NAS fail after ~2 years because I was too cheap to buy a good one to start with. This is my 6th NAS and hopefully I won't need to replace it anytime soon!
