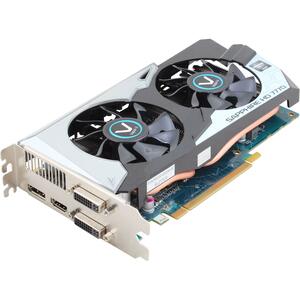

Sapphire Radeon HD 7770 OC 1GHz 1GB 4.5GBPS GDDR5 DVI-I/DVI-D/HDMI/DP PCI-E Video Card

Sapphire Radeon HD 7770 OC 1GHz 1GB 4.5GBPS GDDR5 DVI-I/DVI-D/HDMI/DP PCI-E Video Card
Actual product may not be exactly as shown.
Customer Photos (0)
Reg. Price: $152.18  CAD
This Product is Not Available

This item is no longer available. Notify me if this product is available again.
Service Plan:
NCIX Express Exchange
If your product is diagnosed as defective, we will replace it with a brand new one! Learn More
None, I do not want NCIX Express Exchange 1 Year Component Express Exchange - Only $13.99 2 Year Component Express Exchange - Only $34.99 3 Year Component Express Exchange - Only $55.99
Avg. Rating: 0 Customer Reviews | Write a Review
Share this:
Add to your wish list
E-Mail to a friend
More from SAPPHIRE
Similar products
Print this item
Notify me

   Shipping Weight:   0.7 lbs
   Part #: 11201-05-20G
 May We Also Suggest

Features    [ Edit | History ]

The SAPPHIRE HD 7770 Vapor-X OC Edition is the first card in this generation to use the SAPPHIRE exclusive implementation of Vapor chamber cooling technology. Previous products with Vapor-X have received world wide acclaim for delivering very efficient cooling that allows the card to run at higher speeds but with very low noise levels. Based on the latest GPU technology from AMD, the SAPPHIRE HD 7770 Vapor-X OC Edition has 1GB of the latest DDR5 memory, and is factory overclocked with core clocks of 1100MHz and memory clocks of 1300MHz (5.2 GB/s effective) to deliver excellent performance.

Quick Specs:
Host Interface PCI Express 3.0 x16
Platform Supported PC
Standard Memory 1 GB
Thickness 1.7"
API Supported OpenGL 4.2 DirectCompute DirectX 11.0
Form Factor Plug-in Card
Length 8.3"
Memory Speed 5200 MHz
Maximum Resolution 4096 x 2160
Cooler Type Fan Cooler
Memory Technology GDDR5 SDRAM
Height 4.3"
Bus Width 128 bit
Multi-GPU Technology CrossFireX
Analog Signal Yes
Digital Signal Yes
Number of Monitors Supported 3
Dual Link DVI Supported Yes
Chipset Manufacturer AMD
Chipset Model HD 7770
Chipset Line Radeon
Chipset Series HD 7000
DisplayPort Yes
Slot Space Required Dual
Number of DisplayPort Outputs 1
Number of DVI Outputs 2
Number of HDMI Outputs 1
GPU Clock 1.10 GHz

Specifications    [ Edit | History ]
General Information
     Brand Name: Sapphire
     Manufacturer: Sapphire, Inc
     Manufacturer Part Number: 11201-05-20G
     Manufacturer Website Address:
     Package Type: Lite Retail
     Product Name: Vapor-X Radeon HD 7770 GHz Edition OC Graphic Card
     Product Type: Graphic Card
     DisplayPort: Yes
     Dual Link DVI Supported: Yes
     DVI: Yes
     HDMI: Yes
     Host Interface: PCI Express 3.0 x16
     Number of DisplayPort Outputs: 1
     Number of DVI Outputs: 2
     Number of HDMI Outputs: 1
     Bus Width: 128 bit
     Memory Speed: 5200 MHz
     Memory Technology: GDDR5 SDRAM
     Standard Memory: 1 GB
     Platform Supported: PC
     System Requirements:
  • PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
  • 2 X 75 Watt 6-pin PCI Express power connector is required for CrossFireX system
  • 1 X 75 Watt 6-pin PCI Express power connector is required
  • Certified power supplies are recommended
  • 1024 MB Minimum of system memory
  • Installation software requires CD-ROM drive
  • DVD playback requires DVD drive
  • Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
  • To support 3 displays, one of the monitors has to support DisplayPort
  • 450 Watt Power Supply is required

Operating System(s):

  • Windows XP
  • Windows 7

Physical Characteristics
     Cooler Type: Fan Cooler
     Form Factor: Plug-in Card
     Height: 4.3" (110 mm)
     Length: 8.3" (210 mm)
     Slot Space Required: Dual
     Thickness: 1.7" (43 mm)
Processor & Chipset
     Chipset Line: Radeon
     Chipset Manufacturer: AMD
     Chipset Model: HD 7770
     Chipset Series: HD 7000
     GPU Clock: 1.10 GHz
     Number of Stream Processors: 640
Technical Information
     Analog Signal: Yes
     API Supported: DirectX 11.0
OpenGL 4.2
     Digital Signal: Yes
     Features: AMD HD3D Technology
Eyefinity 2.0
Graphics Core Next (GCN)
PowerPlay Technology
ZeroCore Power Technology
Discrete Digital Multi-Point Audio (DDMA)
Vapor-X Technology
     Maximum Resolution: 4096 x 2160
     Multi-GPU Technology: CrossFireX
     Number of Monitors Supported: 3
     Shader Model: 5.0
